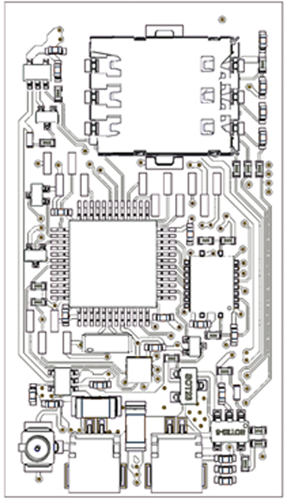

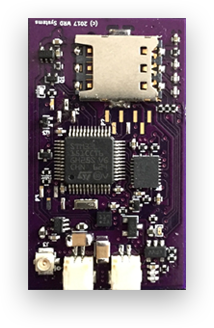

Introducing the geonode iot bridge
The GeoNode Bridge is the single most flexible IOT platform available. Its modular design allows for deployment in almost any scenario. GeoNode is compatible with a huge variety of sensors and can operate using almost any communications protocol including 2G/3G/4G, NB-IoT/Cat M1/LTE, LoRa and even satellite connections. With an internal memory of up to 32gb GeoNode Bridge can log up to 10 years’ worth of data. The unit's burst mode allows for data to be compressed and transmitted in bulk, saving on data costs.
GeoNode Bridge is available with fully customized firmware, plastics and sensor stacks meaning our customers get the exact device they need to meet their requirements. Whether you monitor a fleet of thousands of vehicles, monitor sensor data from around the world or simply network household appliances the GeoNode Bridge is everything you will ever need.
Product Features
- Fully programmable motion sensor with diagnostic feedback
- Compression and burst data mode
- Integrated temperature sensor
- On-board buffering of data
- Built in tri-axis accelerometer with impact sensing
- Embedded cryptographic stack with 256-bit encryption and support for multiple keys
- Real time g-force sensing
- Multiple sensor inputs
Dimensions
At 40 x 22mm the GeoNode Bridge fits into even the most cramped of spaces. The tiny footprint of the bridge makes it ideal for retrofitting into existing devices. Simply add the required sensors and a power supply to deploy the exact IOT solution you need
Power Management
The bridge’s power management function works alongside any sensor or firmware trigger in order to save unnecessary power consumption utilising our intelligent power down functionality
Triangulation
GeoNode Bridge supports cell tower triangulation for positioning where GNSS is typically unavailable or underperforming.
GPS/GLONASS
- Multi-GNSS engine for combined GPS, GLONASS, Galileo, and QZSS
- Self-generated orbit prediction for instant positioning fix
- Ultra-low tracking power consumption. typically 18mA in operation, micro amps in standby mode
- Consumption,18mA
- Intelligent algorithm for power saving
- High sensitivity, -165dBm@Tracking, -148dBm@Acquisition
- 99 acquisition / 33 tracking channels, up to 210PRN channels
- Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
- Anti-Jamming, Multi-tone Active Interference Canceller
Standard Data Parameters
- Unique ID
- GPS data in RMC format
- GPS satellite info
- Altitude
- Geofence status
- Communications signal quality
- Cellular triangulation location
- Battery status and charge level
- Temperature
- Sensor Data
Other data available depending upon optional features. All data is sent in character string format with full encryption. All data can be retrieved via API in IJSON/XML/ format
Data Transmission
- Penta Band Worldwide coverage
- Jamming detection
- Optional burst mode function
Power
With power modules that can cope with any voltage input, the Geonode Bridge can easily be integrated with any existing power supply.
This level of flexibility allows us to retrofit almost any hardware with the Geonode Bridge Optional Modules
Optional Modules
- Data logger module expandable to 32GB
- Bluetooth module for device pairing
- Range of environmental sensors
- CanBus diagnostic module
- Multiple communication Modules
Your Device Your Way
By offering fully customised firmware we are able to offer GeoNode Bridge as a solution for any number of applications. Our team can give you the device you need configured exactly as you want.
Custom firmware options include but are not limited to:
- Selecting data parameters to be transmitted
- Selecting update intervals
- Configuring specific alarm and geofence requirements
- Define encryption levels and implementation
- Configuring data compression in order to optimise data usage
The flexibility of the GeoNode Bridge does not end with the hardware, our software platform allows for all your data to be easily accessed, monitored and exported. For customers who have an existing software platform our API allows for easy integration.
All GeoNode devices are manufactured by WRD Systems in the UK.
For full details of how the GeoNode Bridge can work for you can contact us today by emailing us at info@wrdsystems.co.uk

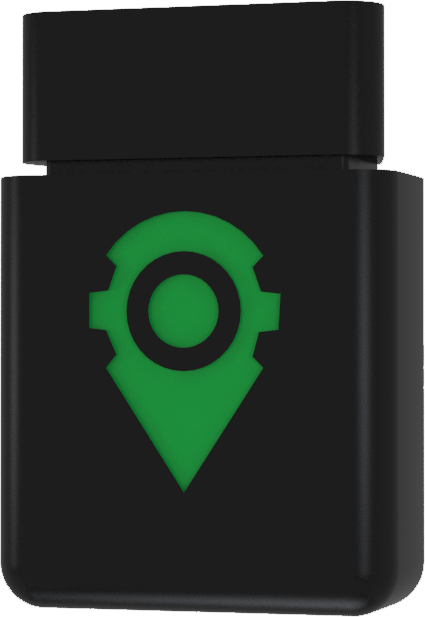

Introducing the GeoNode OBD
The GeoNode OBD is the first device in its class to offer simultaneous GPS and GLONASS reception as well as features such as intelligent impact detection and real time G-Force monitoring. With an internal memory of up to 32gb GeoNode OBD can log up to 10 years’ worth of data. The unit's burst mode allows for data to be compressed and transmitted in bulk, saving on data costs.
As with all our hardware, the GeoNode OBD is available with fully bespoke firmware configuration.
Whether you are tracking a single car or fleets of thousands, the GeoNode OBD has a configuration that will fit both your project and your budget. For those with more project specific goals, the GeoNode OBD can be fitted with a range of expansion modules ranging from environmental sensors to CanBus modules.
Product Features
- Fully programmable motion sensor with diagnostic feedback
- Triple axis accelerometer
- Integrated temperature sensor
- On-board buffering of data
- Crash detection via built-in g-force sensor
- Embedded cryptographic stack with 256-bit encryption and support for multiple keys
- Real time g-force sensing
- Driving quality sensing and impact detection
DIMENSIONS
At 48 x 25 x 25mm the GeoNode OBD fits neatly into almost every OBD11 port while still utilizing a full sized GPS/GLONASS antenna offering exceptional signal quality.
For vehicles that have very limited space, an extra breakout cable is available to facilitate fitting.
Power Management
The units power management function works with the built in motion sensor to power down when not moving in order to save unnecessary drain on your vehicles battery.
TRIANGULATION
GeoNode OBD supports cell tower triangulation for positioning where GNSS is typically unavailable or underperforming.
GPS/GLONASS
- Multi-GNSS engine for combined GPS, GLONASS, Galileo, and QZSS
- Self-generated orbit prediction for instant positioning fix
- Ultra-low tracking power consumption,18mA
- Intelligent algorithm for power saving
- High sensitivity, -165dBm@Tracking, -148dBm@Acquisition
- 99 acquisition / 33 tracking channels, up to 210PRN channels
- Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
- Anti-Jamming, Multi-tone Active Interference Canceller
Standard Data Parameters
- Tracker ID
- GPS data in RMC format
- GPS satellite info
- Altitude
- Geofence status
- GSM signal quality
- Cellular triangulation location
- Battery status and charge level
- Temperature
Other data available depending upon optional features. All data is sent in character string format with full encryption. All data can be retrieved via API in IJSON/XML/ format
Data Transmission
- Penta Band Worldwide coverage
- Jamming detection
- Optional burst mode function
Battery
While the unit is charged by the vehicles own power supply GeoNode OBD also contains a small backup battery that allows for several days worth of tracking in the event of disconnection.
Optional Modules
- Data logger module expandable to 32GB
- Bluetooth module for device pairing
- Range of environmental sensors
- CanBus diagnostic module
Your Device Your Way
By offering fully customised firmware we are able to offer GeoNode OBD as a solution for any number of applications. Our team can give you the device you need configured exactly as you want.
Custom firmware options include but are not limited to:
- Selecting data parameters to be transmitted
- Selecting update intervals
- Configuring specific alarm and geofence requirements
- Define encryption levels and implementation
- Configuring data compression in order to optimise data usage
The flexibility of the GeoNode OBD does not end with the hardware, our software platform allows for all your data to be easily accessed, monitored and exported. For customers who have an existing software platform our API allows for easy integration.
All GeoNode devices are manufactured by WRD Systems in the UK.
For full details of how the GeoNode Bridge can work for you can contact us today by emailing us at info@wrdsystems.co.uk

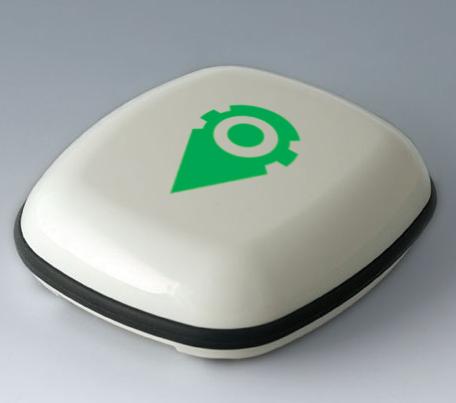

Introducing the GeoNode Flex
The GeoNode Flex is the first device in its class to offer simultaneous GPS and GLONASS reception as well as features such as intelligent impact detection and real time G-Force monitoring in a fully sealed, wearable device that uses wireless charging by default. It can pretty much cope with whatever you throw at it (or throw it at). Perfect for your kids, pets, etc. The device can be worn as a watch, can be clipped on a belt or collar, act as a key chain, or be worn around the neck. A large battery makes sure that you can keep track for several days.
As with all our hardware, the GeoNode Flex is available with fully bespoke firmware configuration.
Product Features
- Fully programmable motion sensor with diagnostic feedback
- Triple axis accelerometer
- Integrated temperature sensor
- On-board buffering of data
- Crash/Fall detection via built-in g-force sensor
- Embedded cryptographic stack with 256-bit encryption
DIMENSIONS
At 55 x 45 x 17.5mm the GeoNode Flex strikes a good balance between small size and long battery life. Comfortable to wear for adults, children and pets alike.
Power Management
The units power management function works with the built in motion sensor to power down when not moving in order to save unnecessary drain the battery. This allows one to charge the device and pick it up weeks or months later for use.
TRIANGULATION
GeoNode Flex supports cell tower triangulation for positioning where GNSS is typically unavailable or underperforming.
GPS/GLONASS
- Multi-GNSS engine for combined GPS, GLONASS, Galileo, and QZSS
- Self-generated orbit prediction for instant positioning fix
- Ultra-low tracking power consumption,18mA
- Intelligent algorithm for power saving
- High sensitivity, -165dBm@Tracking, -148dBm@Acquisition
- 99 acquisition / 33 tracking channels, up to 210PRN channels
- Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
- Anti-Jamming, Multi-tone Active Interference Canceller
Standard Data Parameters
- Tracker ID
- GPS data in RMC format
- GPS satellite info
- Altitude
- Geofence status
- GSM signal quality
- Cellular triangulation location
- Battery status and charge level
- Temperature
Other data available depending upon optional features. All data is sent in character string format with full encryption. All data can be retrieved via API in IJSON/XML/ format
Data Transmission
- Penta Band Worldwide coverage
- Jamming detection
Battery
A large 500mAh battery allows for true real time tracking while maintaining a long battery life. Teh battery is charged wirelessly using the included charging pad.
Your Device Your Way
By offering fully customised firmware we are able to offer GeoNode Flex as a solution for any number of applications. Our team can give you the device you need configured exactly as you want.
Custom firmware options include but are not limited to:
- Selecting data parameters to be transmitted
- Selecting update intervals
- Configuring specific alarm and geofence requirements
- Define encryption levels and implementation
- Configuring data compression in order to optimise data usage
The flexibility of the GeoNode Flex does not end with the hardware, our software platform allows for all your data to be easily accessed, monitored and exported. For customers who have an existing software platform our API allows for easy integration.
All GeoNode devices are manufactured by WRD Systems in the UK.
For full details of how the GeoNode Bridge can work for you can contact us today by emailing us at info@wrdsystems.co.uk

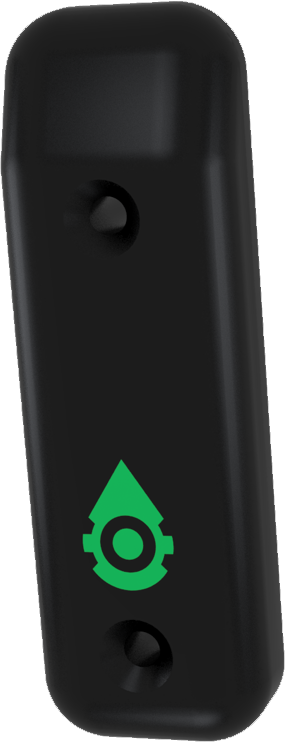

Introducing the GeoNode Sport
The GeoNode Sport aims to offer the most configurable bike tracking and monitoring device available while retaining true plug and play functionality. GeoNode Sport is the first tracker to offer both 2G and 3G connectivity with support for both GPS and GLONASS out of the box.
As with all our hardware, the GeoNode Sport is available with fully bespoke firmware configuration.
Whether you are tracking a single bike or fleets of thousands, the GeoNode Sport has a configuration that will fit both your project and your budget. For those with more project specific goals, the GeoNode Sport can be fitted with a range of expansion modules ranging from data loggers to environment sensors.
Product Features
- Fully programmable motion sensor with diagnostic feedback
- Triple axis accelerometer
- Integrated temperature sensor
- On-board buffering of data
- Crash detection via built-in g-force sensor
- Embedded cryptographic stack with 256-bit encryption and support for multiple keys
- Multiple charging options for e-bikes and dynamo equipped bikes

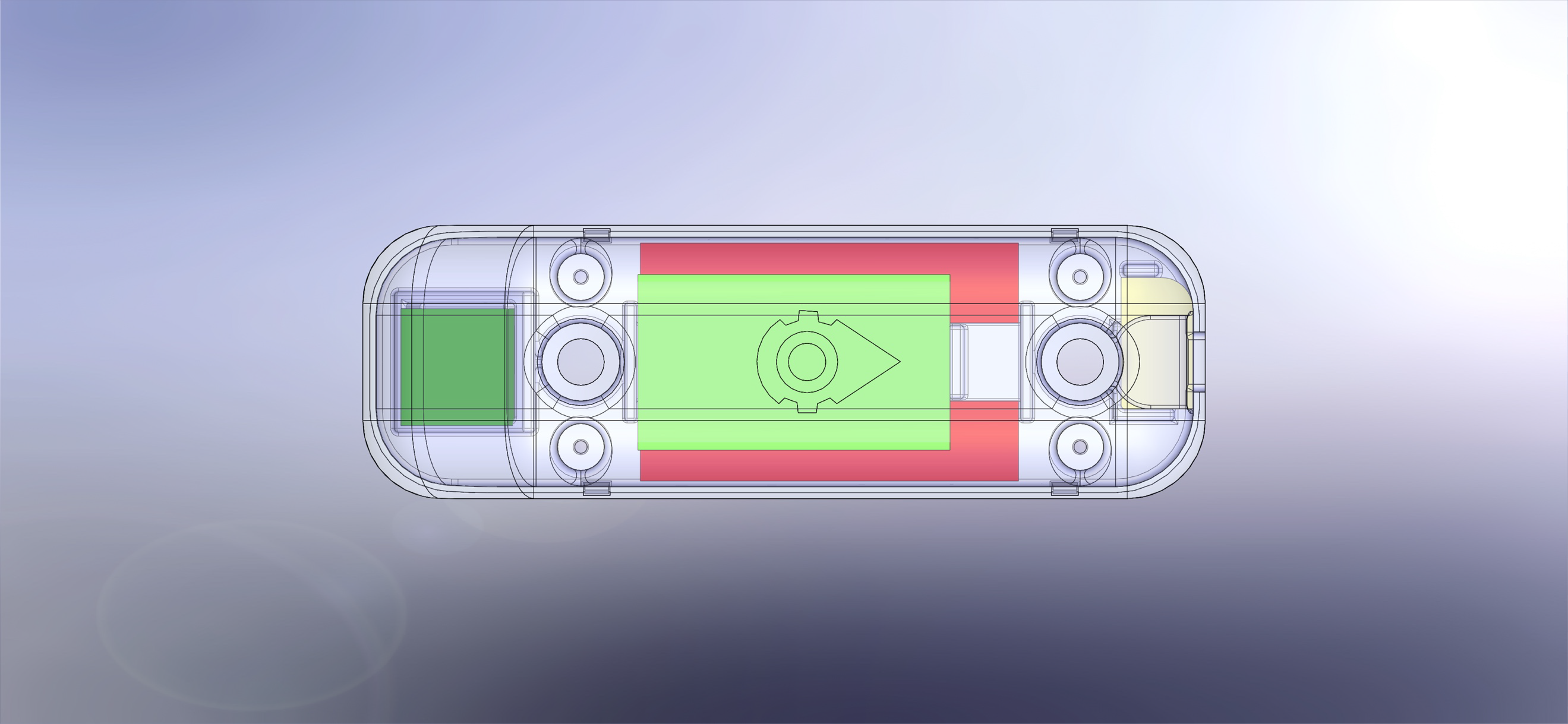

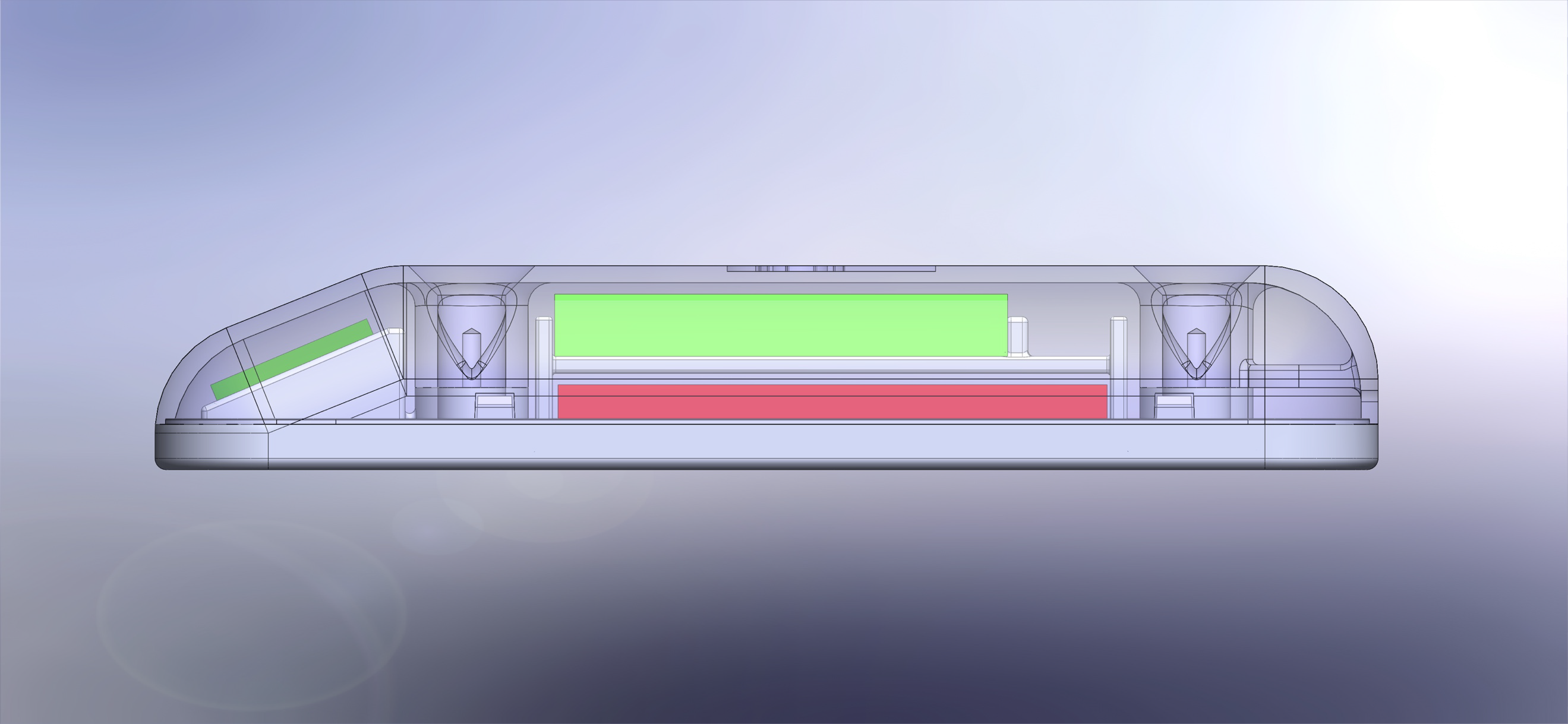

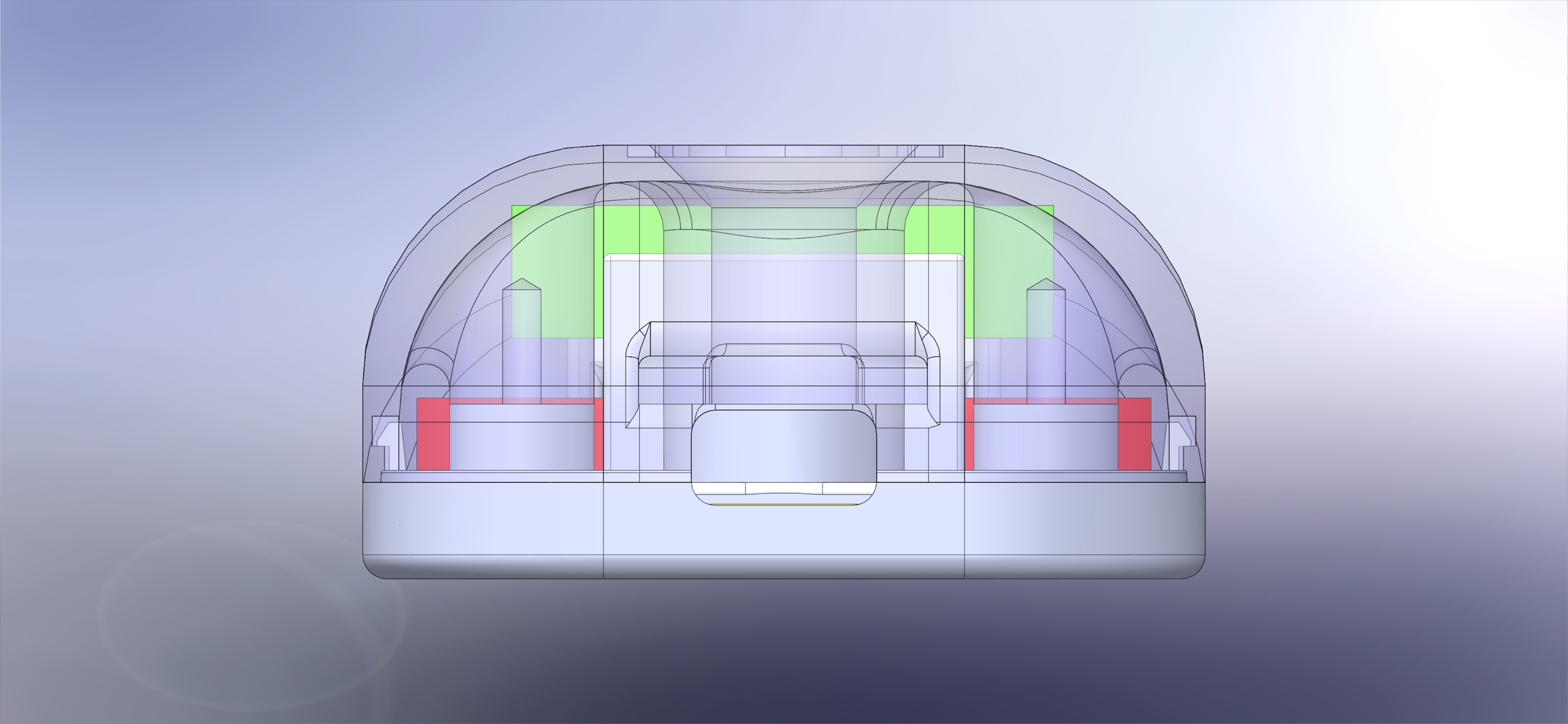

DIMENSIONS
At 108 x 35 x 18 mm the GeoNode Sport fits neatly to a bike’s existing drinks holder mounting point. allowing for secure installation of the device. This mounting point also provides an excellent view of the sky to maximize GPS/GLONASS signal quality.
An optional drinks holder is available that keeps the device completely hidden from view.
Power Management
Our embedded power management system works with the unit’s accelerometer to power down when not in motion allowing for a greatly extended battery life.
TRIANGULATION
GeoNode Sport supports cell tower triangulation for positioning where GNSS is typically unavailable or underperforming
GPS/GLONASS
- Multi-GNSS engine for combined GPS, GLONASS, Galileo, and QZSS
- Self-generated orbit prediction for instant positioning fix
- Ultra-low tracking power consumption,18mA
- Intelligent algorithm for power saving
- High sensitivity, -165dBm@Tracking, -148dBm@Acquisition
- 99 acquisition / 33 tracking channels, up to 210PRN channels
- Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
- Anti-Jamming, Multi-tone Active Interference Canceller
Standard Data Parameters
- Tracker ID
- GPS data in RMC format
- GPS satellite info
- Altitude
- Geofence status
- GSM signal quality
- Cellular triangulation location
- Battery status and charge level
- Temperature
Other data available depending upon optional features. All data is sent in character string format with full encryption. All data can be retrieved via API in IJSON/XML/ format
Data Transmission
- Penta Band Worldwide coverage
- Jamming detection
Battery
The GeoNode Sport comes with one of the smallest 1000mah lithium batteries available. This combined with our ultralow power tracker board and a number of power saving firmware features allows for a battery life of up to one month between charges.
Charging
The GeoNode Sport charges from a simple mini USB port and can be paired with a number of other charging options for e-bikes and bikes with dynamos.
OPTIONAL MODULES
To further extend the functionality of the GeoNode Sport we offer a number of optional modules for larger deployments:
- Bluetooth functionality allowing devices to be paired with smartphones and other devices.
- Data logging modules that allow storage of millions of data points.
- A full range of environmental sensors.
Your Device Your Way
By offering fully customised firmware we are able to offer GeoNode Sport as a solution for any number of applications. Our team can give you the device you need configured exactly as you want.
Custom firmware options include but are not limited to:
- Selecting data parameters to be transmitted
- Selecting update intervals
- Configuring specific alarm and geofence requirements
- Define encryption levels and implementation
- Configuring data compression in order to optimise data usage
The flexibility of the GeoNode Sport does not end with the hardware, our software platform allows for all your data to be easily accessed, monitored and exported. For customers who have an existing software platform our API allows for easy integration.
All GeoNode devices are manufactured by WRD Systems in the UK.
For full details of how the GeoNode Bridge can work for you can contact us today by emailing us at info@wrdsystems.co.uk

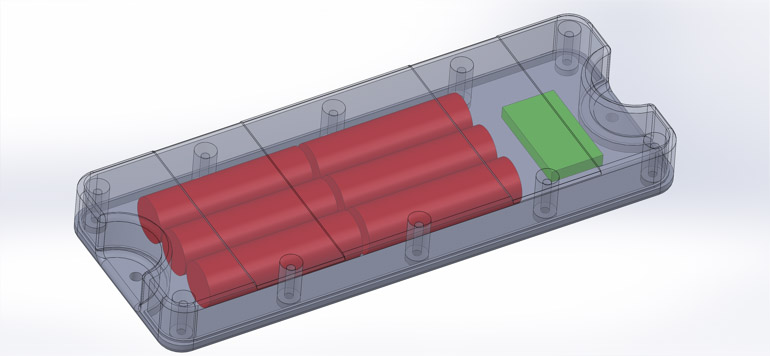

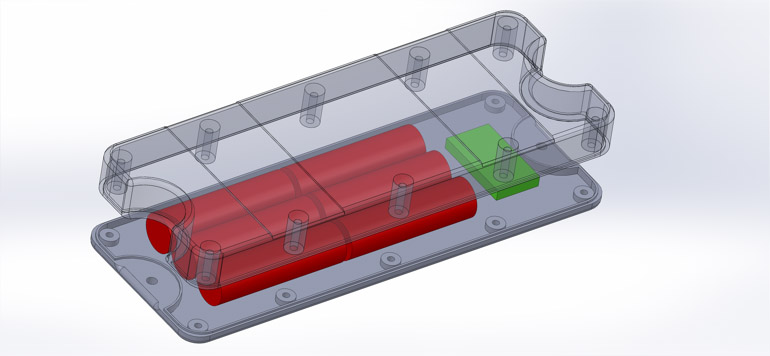

Introducing the GeoNode Atlas
The GeoNode Atlas is the ultimate long duration GPS tracking device with up to five years of battery life from a single charge.
The GeoNode atlas is designed for long duration deployments and depending on users specifcations can operate for up to five years on a single charge. Atlas also include a fully waterproof casing, wireless charging, combined GPS/GLONASS reception as standard
As with all our hardware, the GeoNode Atlas is available with fully bespoke firmware configuration.
Whether you are tracking a single asset or thousands of devices, the GeoNode Atlas has a configuration that will fit both your project and your budget.
For those with more project specific goals the GeoNode Atlas can be fitted with a range of expansion modules ranging from data loggers to environmental sensors.
Product Features
- Fully programmable motion sensor with diagnostic feedback
- Triple axis accelerometer
- Integrated temperature sensor
- On-board buffering of data
- impact detection via built in g-forcesensor
- Embedded cryptographic stack with 256-bit encryption and support for multiple keys
- Wireless charging allowing for a fully waterproof device

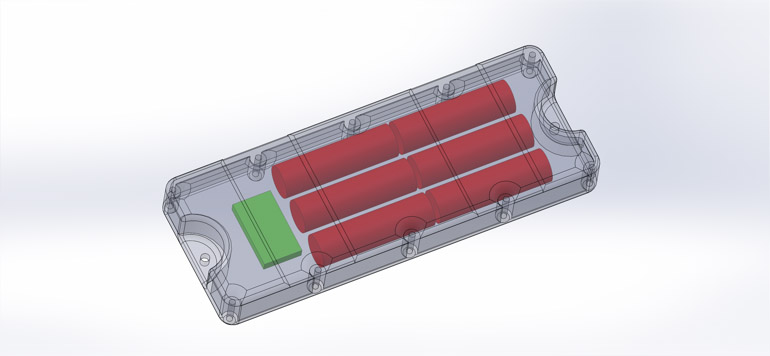

DIMENSIONS
At 225x85x25 mm the GeoNode Atlas fits into a surprising number of places. The integrated mounting points make for very quick installation and magnetic mounts are available.
Atlas will fit neatly neatly into the top or side panel of all shipping containers for clients wishing to monitor high value shipments.
Power Management
Our embedded power management system works with the unit’s accelerometer to power down when not in motion allowing for a greatly extended battery life.
TRIANGULATION
GeoNode Atlas supports cell tower triangulation for positioning where GNSS is typically unavailable or underperforming
GPS/GLONASS
- Multi-GNSS engine for combined GPS, GLONASS, Galileo, and QZSS
- Self-generated orbit prediction for instant positioning fix
- Ultra-low tracking power consumption,18mA
- Intelligent algorithm for power saving
- High sensitivity, -165dBm@Tracking, -148dBm@Acquisition
- 99 acquisition / 33 tracking channels, up to 210PRN channels
- Support DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN)
- Anti-Jamming, Multi-tone Active Interference Canceller
Standard Data Parameters
- Tracker ID
- GPS data in RMC format
- GPS satellite info
- Altitude
- Geofence status
- GSM signal quality
- Cellular triangulation location
- Battery status and charge level
- Temperature
Other data available depending upon optional features. All data is sent in character string format with full encryption. All data can be retrieved via API in IJSON/XML/ format
Data Transmission
- Penta Band Worldwide coverage
- Jamming detection
Battery
The GeoNode Atlas comes with massive 20,000mAh battery. This combined with our ultralow power tracker board and a number of power saving firmware features allows for a battery life of up to five years between charges (subject to final firmware spec)
Charging
The GeoNode Atlas charges from a simple Wireless charging pad, just place the device on the pad every few years and you are good to go. No cables and no ports that can allow water into the device.
OPTIONAL MODULES
To further extend the functionality of the GeoNode Sport we offer a number of optional modules for larger deployments:
- Bluetooth functionality allowing devices to be paired with smartphones and other devices.
- Data logging modules that allow storage of millions of data points.
- A full range of environmental sensors.
Your Device Your Way
By offering fully customised firmware we are able to offer GeoNode Atlas as a solution for any number of applications. Our team can give you the device you need configured exactly as you want.
Custom firmware options include but are not limited to:
- Selecting data parameters to be transmitted
- Selecting update intervals
- Configuring specific alarm and geofence requirements
- Define encryption levels and implementation
- Configuring data compression in order to optimise data usage
The flexibility of the GeoNode Atlas does not end with the hardware, our software platform allows for all your data to be easily accessed, monitored and exported. For customers who have an existing software platform our API allows for easy integration.
All GeoNode devices are manufactured by WRD Systems in the UK.
For full details of how the GeoNode Bridge can work for you can contact us today by emailing us at info@wrdsystems.co.uk
